Imagine one solution that can cover 95% of Your installations. Solution that will cover both audio and video.
Solution that will provide signal extension and control over a system. Solution that will have all of interfaces and inputs already pre-equipped with wall plates. Solution that can control system components but that can also be controlled by higher level systems. Sounds nice, right?
Well, you don't need to google for it, here it is, HALL TRK1 kit. Complete, reliable, robust and cost effective.

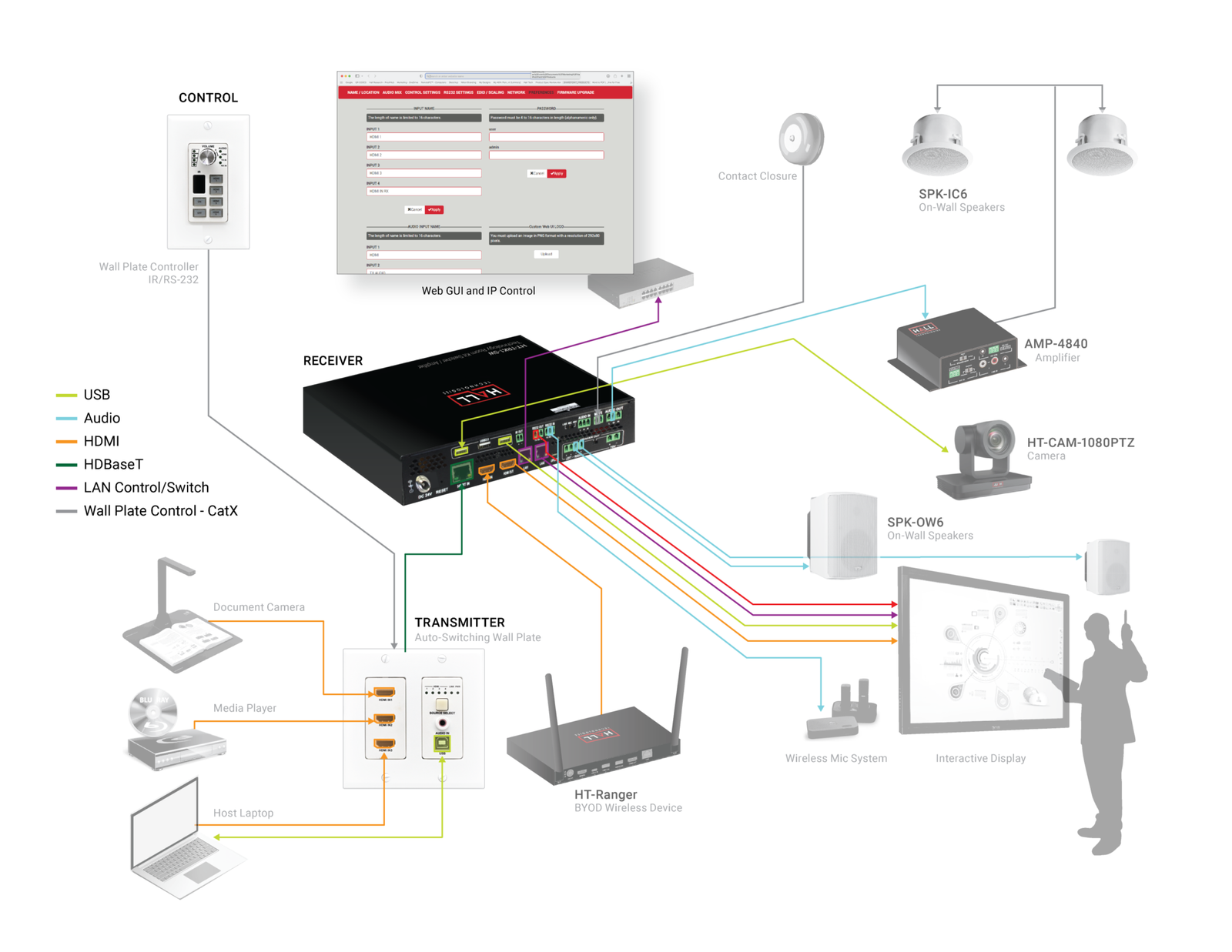

TRK1 is a 3 part set:
1. Base unit - You connect everything to it and hide it behind the screen or in lectern. Equipped with audio amplifier, local HDMI and audio inputs, USB inputs for KVM or Touch or VC camera and set of control interfaces (RS-232 slave and master, IR, mute contact detection)
2. Signal transmitter - in form of nice wall plate, equipped with 3 HDMI inputs, USB-B for remote KVM control or touch screen control, and analog audio in for all other things You would like to listen to. There's also button for source switching and set of control LED's for quick and easy system check.
3. Audio control - with dedicated volume control knob, audio and video source selector and discrete system on and off buttons.
To create complete installation You will need just speakers (both low impedance and 70V are compatible) and display (LCD monitor, projector, interactive whiteboard etc.)
To control connected peripherals You can use IP, serial or IR all of which is programmed via WEB interface. You can youse IR receiver implemented in wall plate to learn IR codes from any remote. For easy system identification each time you connect display to HDMI output OSD will show current IP address of base unit
Contact us for online demo or to get unit for testing
